MAGEWELL

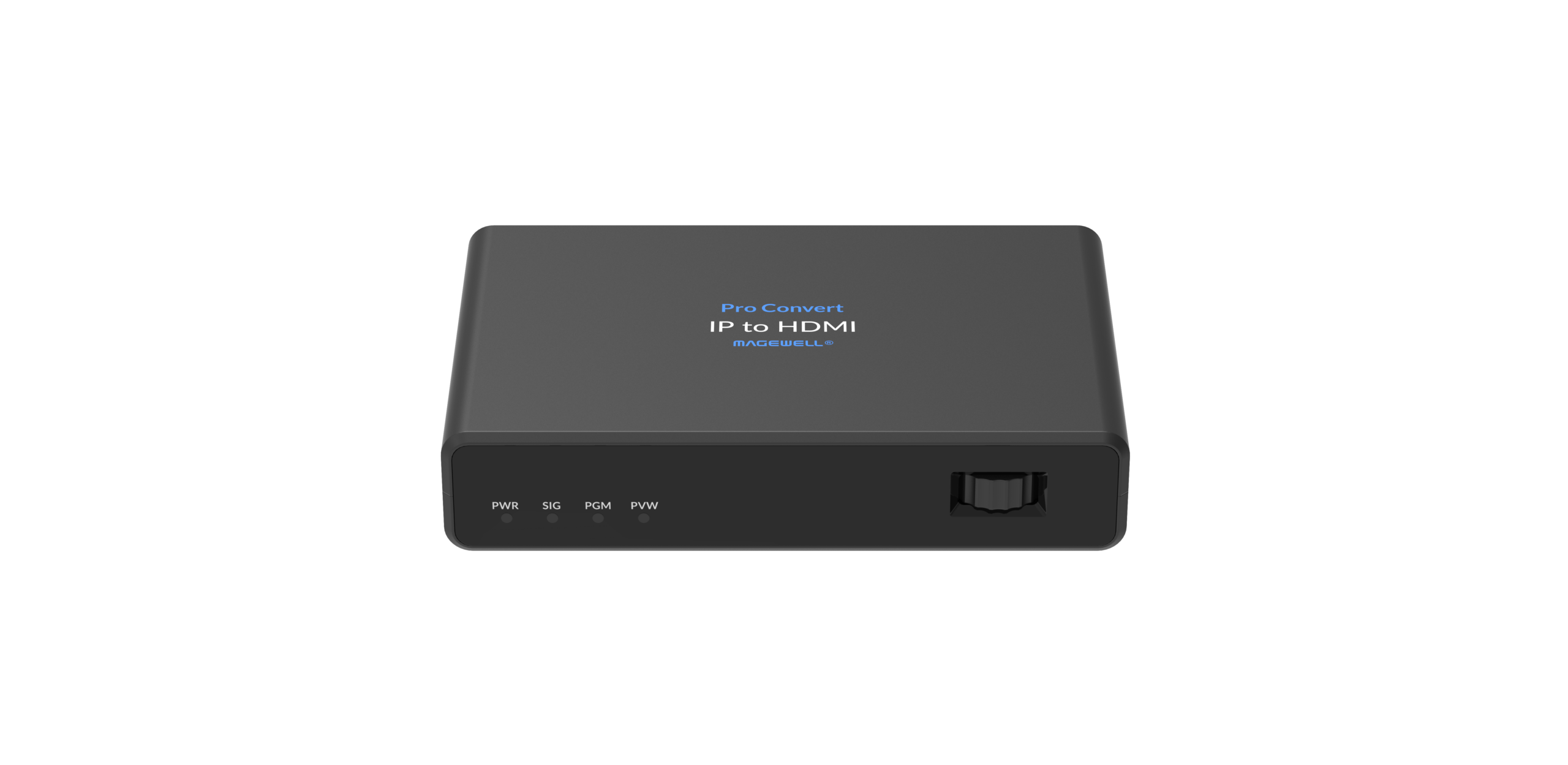

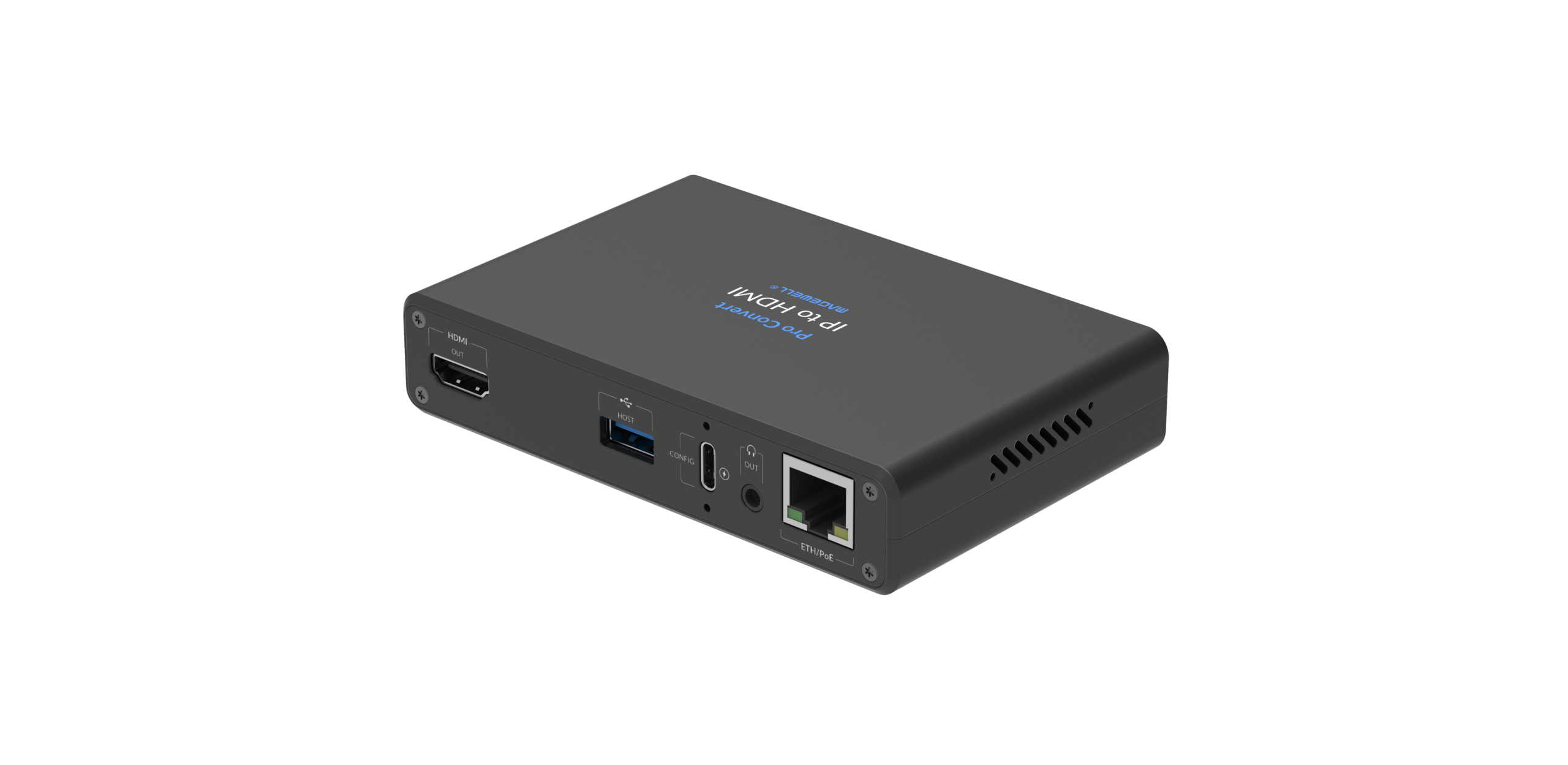

Pro Convert IP to HDMI
Part Number: 64430
Converts up to four IP streams into one QHD HDMI signal
- Up to 4 IP streams can be decoded and output in a preset layout, including a single main window, the picture-in-picture or quad-screen mode
- Connects baseband presentation or distribution equipment into IP-based media networks
- Video preview, in real-time stream or MJPEG picture is available on the web GUI
MSRP: $529.00 USD
Warranty Term: 2 Years
PRODUCT DETAILS
Output Features
- Max output: 2560×1440 60fps 4:4:4 10-bit
- Delivering video at the preferred video format according to the capabilities of the connected monitor
- Support 48/96KHz 8-channel audio output
- Support HDR10
Decoding Features
- Support decoding 1 stream of up to 2560x1440p60 in H.264/H.265, SpeedHQ (NDI High Bandwidth), and MPEG2 Format
- Support NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, TS over RTP/UDP, RTMP, RTSP, HLS, ZIXI protocols
- Support multiview layouts
– For quad-screen, support decoding 4 streams of H.264/H.265 at up to 1920x1080p60 simultaneously
– For picture-in-picture, support decoding 2 streams of up to 1920x1080p60 simultaneously, with a maximum of 1 stream in MPEG2 or SpeedHQ (NDI High Bandwidth) format - Support decoding audio in AAC, MP3, AC3, Opus, and G.711 formats
- Support NDI 6.x
Configuration Features
- Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
- Register with Control Hub for remote centralized management
Other
- Support preview of output images and PTZ control
- Provide HTTP APIs
- LED status indicators
- Form factor: 4.72 in (L) x 3.12 in (W) x 0.96 in (H) (120 mm x 79.3 mm x 24.5 mm)
