TELYCAM
Explore 100
Part Numbers:
Black: ES900-30-4K-B
White: ES900-30-4K-W

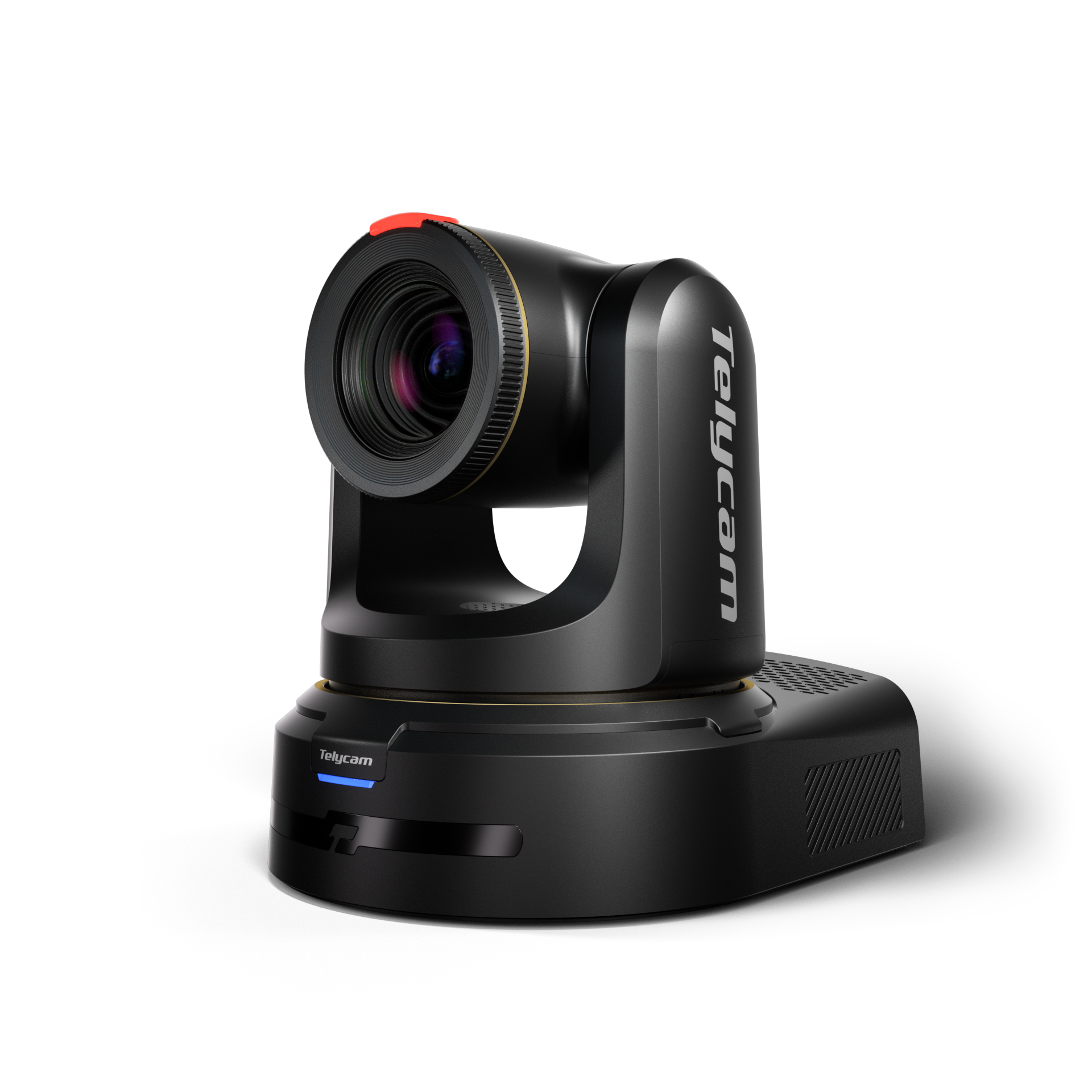

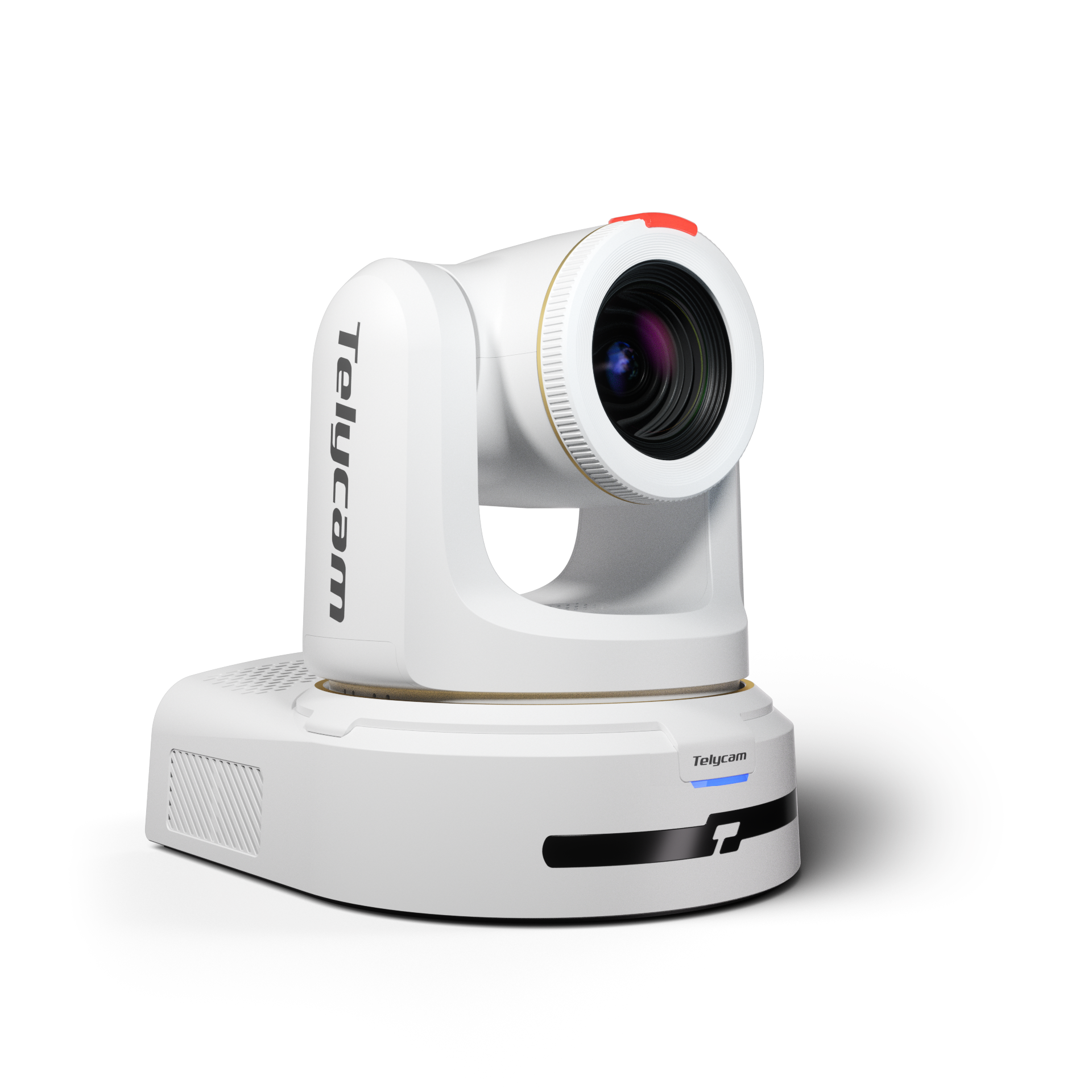

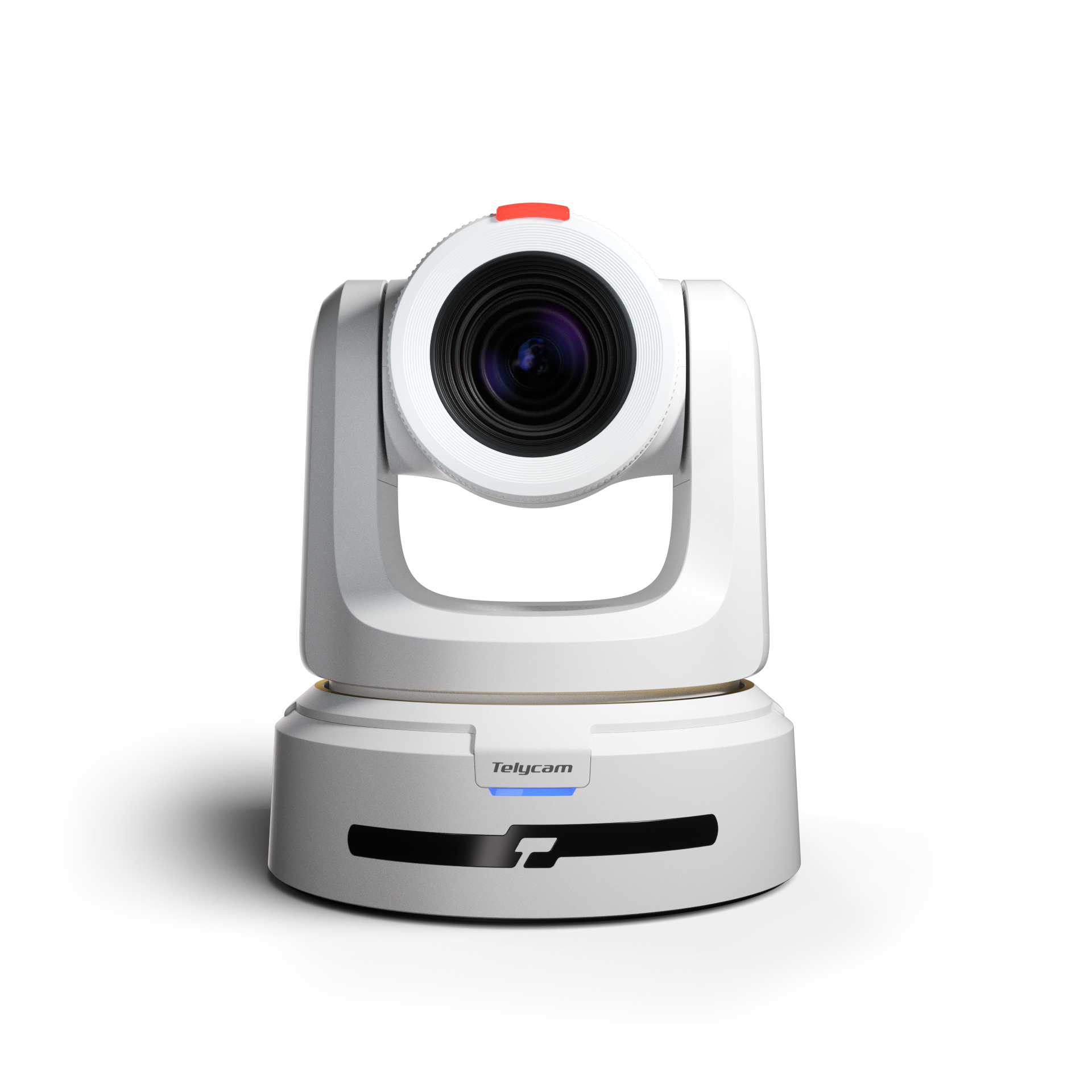

1.8″ Sensor 4K PTZ Camera for Entry-Level Broadcast
• 4K60 UHD video resolution
• 30x optical zoom
• Support Free-D
• Built-in auto tracking function

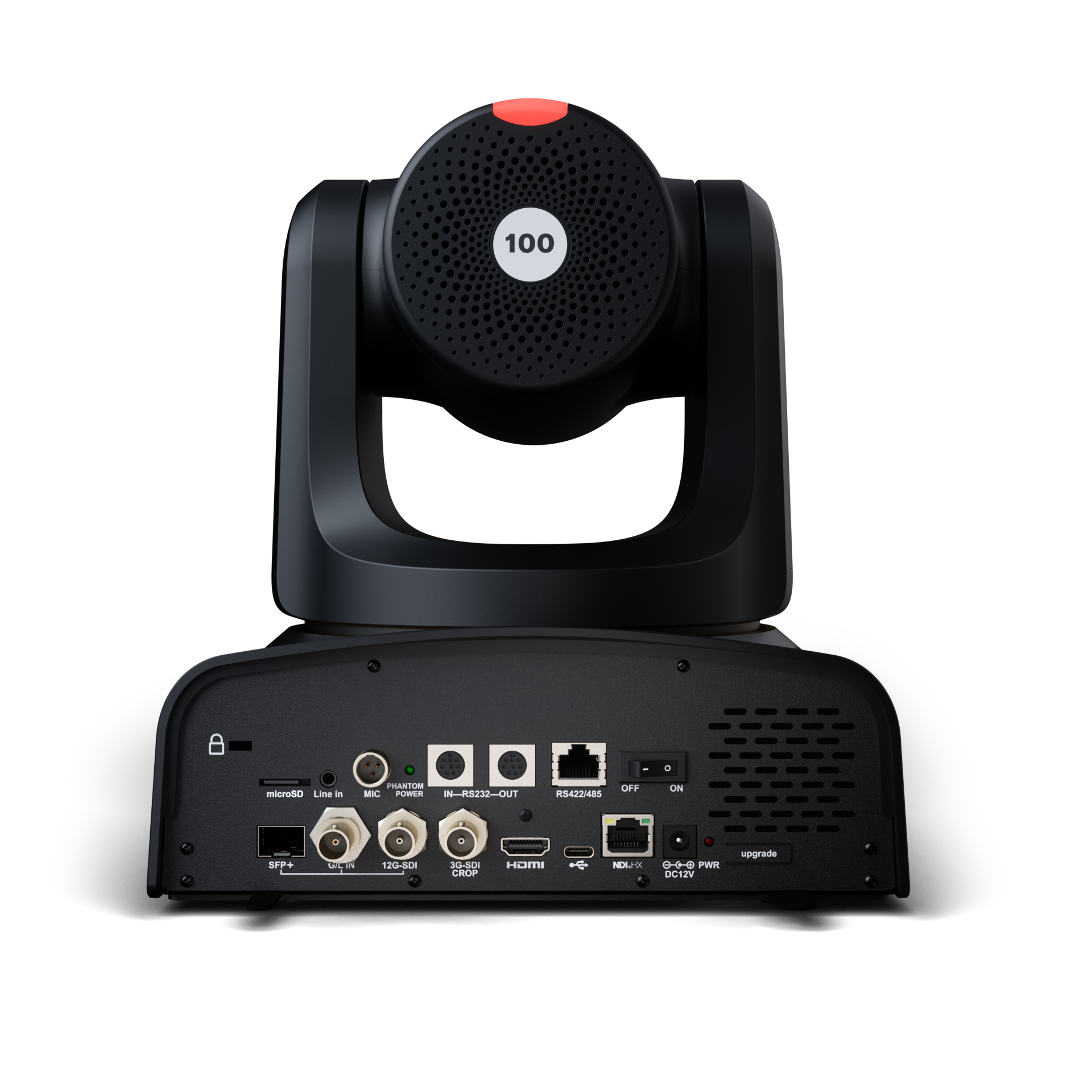

• NDI®/NDI®|HX /HDMI2.0/12G-SDI/SFP+ video interface
• Genlock Functionality
• 3.5mm line-in input and Mini XLR supports phantom power
• Power over Ethernet
MSRP: $2999.00
Warranty Term: 5 Years
Partner Price: $2,249.00 USD
PRODUCT DETAILS
DC Brushless PTZ Motor
The Explore 100 features a precision DC brushless PTZ motor system with synchronized Pan, Tilt, and Zoom control during preset recall, ensuring smooth movement between preset positions.
With stable torque across the full speed range, the system delivers especially smooth and precise low-speed operation, reducing jitter and abrupt transitions while eliminating robotic motion commonly found in conventional PTZ cameras for natural broadcast-grade performance.
Output Options
The Explore 100 offers diverse output options, ensuring 4K60p output through NDI®, NDI®HX, 12G-SDI, HDMI, and SFP+. It provides great flexibility and compatibility to Telycam users. Note that USB and NDI cannot output simultaneously.
Others
- Genlock
- Free-D Integration
- AI-Based Auto Tracking
- Mini XLR w/ Phantom Power
- MicroSD
Technical Information
- 1/1.8-inch, 9MP UHD CMOS sensor
- 30X optical zoom
- f = 6.91 ~ 214.64mm, F1.35 ~ F4.6
- Bitrate Range 1024Kbps~61440Kbps
- DC12V, POE+(IEEE802.3at) POE++
- 10.15 lbs
- 232.5mm×264mm×269mm
