MAGEWELL

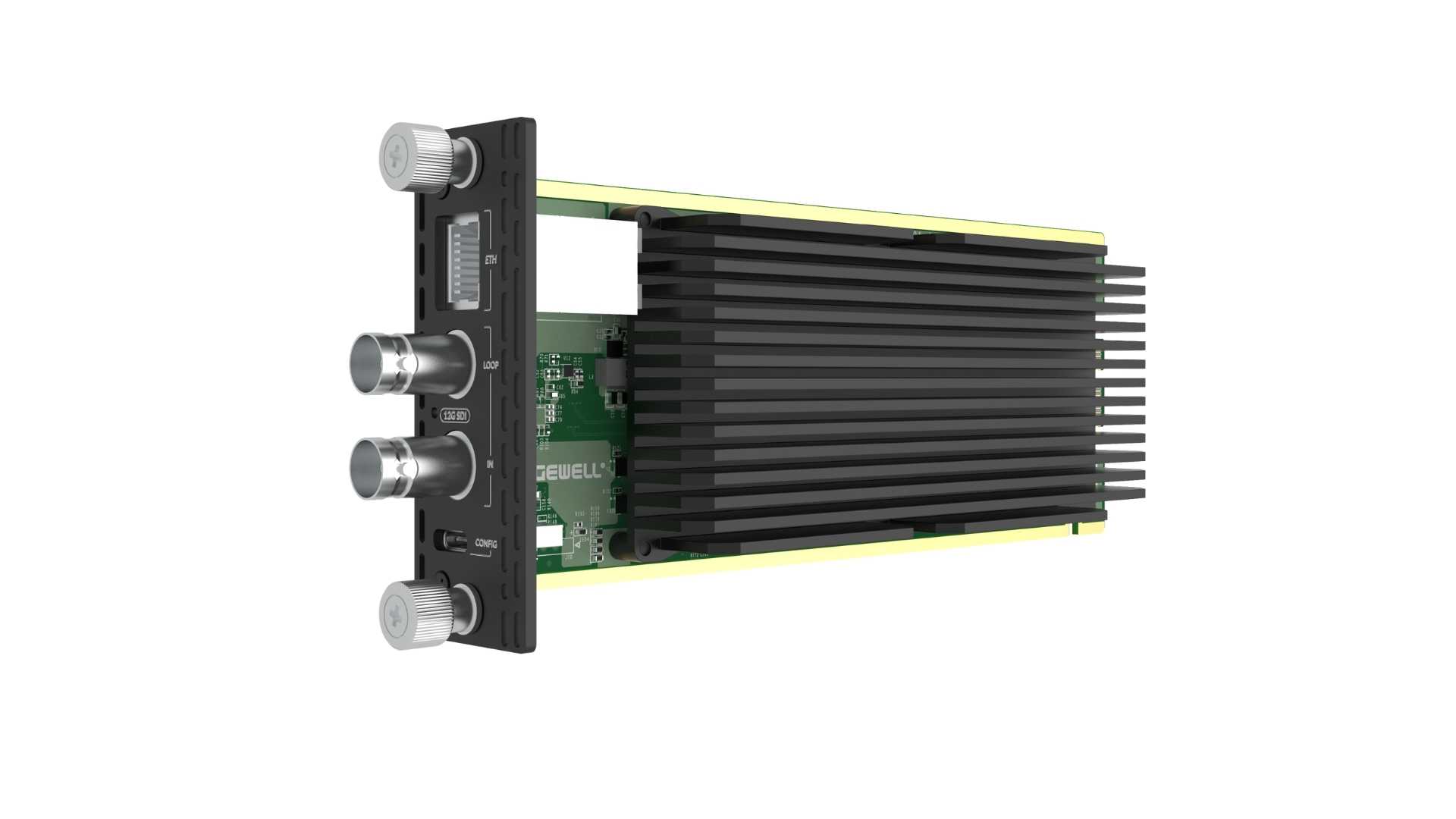

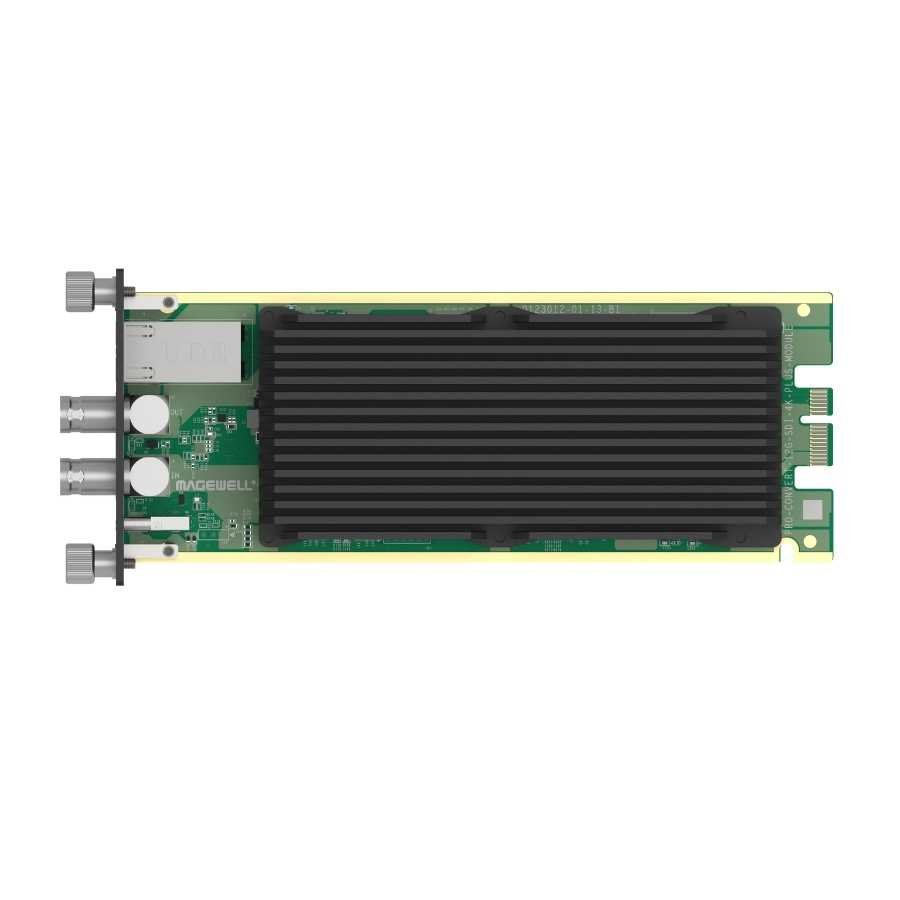

Pro Convert 12G SDI 4K Plus Module
Part Number: B4091
Converts a 12G-SDI input signal into NDI® High-Bandwidth with loop-through
- A hot-swappable module to be installed in Modator Chassis
- Supports inputs up to 4Kp60 with 16 channels of embedded audio
- Centrally manageable via the Modator Chassis and Magewell Control Hub
MSRP: $1,099 USD
Warranty Term: 2 Years
Partner Price: $824.00 USD
PRODUCT DETAILS
Input & Loop Features

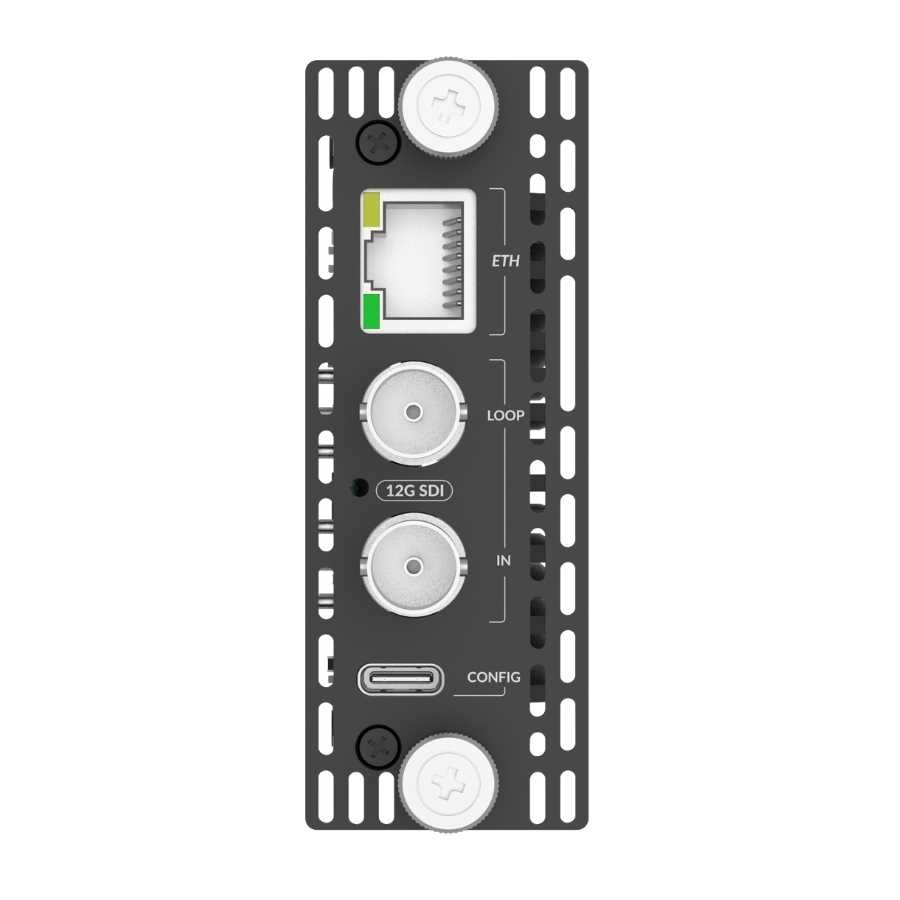

- Single-link 12G-SDI input and loop-through
- Support for up to 4096×2160 60fps input
- Support for 16-channel SDI embedded audio inputs
NDI Encoding Features
- Support for up to 4096×2160 60fps 4:2:2 8-bit NDI encoding
- Sends NDI streams across network segments
- Remotely controls PTZ cameras using protocols of Visca UDP via NDI
- Encodes 16-channel NDI-embedded audio
- Support for NDI 6.X
Others
- Very low latency
- Configure through the touch screen of Modator Chassis, Web GUI or Control Hub
- HTTP-based APIs for custom integration
