MAGEWELL
Pro Convert IP to AIO 4K
Part Number: 64400
Converts up to four IP streams into one 4Kp60 HDMI and SDI signal
- Connects baseband presentation or distribution equipment into IP-based media networks
- Stays compatible with popular video formats and streaming protocols
- Supports HDR PQ/HLG
- Video preview, in real-time stream or MJPEG picture is available on the web GUI
- Remote centralized management via Control Hub or Zixi ZEN Master
MSRP: $1,299 USD
Warranty Term: 2 Years
Partner Price: $976.00 USD
PRODUCT DETAILS
Output Features
HDMI Output Features
- Max output: 4096×2160 60fps 4:2:2 10-bit, or 4096×2160 60fps 4:2:2 12-bit
- Support 48/96KHz 8-channel audio output
- Support HDR PQ/HLG
SDI Output Features
- Max output: 4096×2160 60fps 4:2:2 10-bit
- Support 48KHz 8-channel audio output
- Support Closed Caption compliant with CEA-608 or CEA-708 embedded CEA-608 standards
- Support HDR PQ/HLG via ANC metadata
Decoding Features
- Support NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, MPEG-TS over RTP/UDP/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI protocols
- Support multiview layouts
– For Single View, support decoding 1 stream of H.264, H.265, SpeedHQ or MPEG2 at up to 4096x2160p60
– For Picture-in-Picture, support decoding 2 streams of H.264, H.265, SpeedHQ or MPEG2 at up to 1920x1080p60 (Only one NDI High Bandwidth or one MPEG2 format video signal can be decoded.)
– For Quad view, support decoding 4 streams of H.264 or H.265 at up to 1920x1080p60 - Support decoding audio in AAC, MP3, AC3, Opus, and G.711 formats
- Support NDI 6.X
Others
- Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
- Register with Control Hub or Zixi ZEN Master for remote centralized management
- Support preview of output images and PTZ control
- Provide HTTP APIs

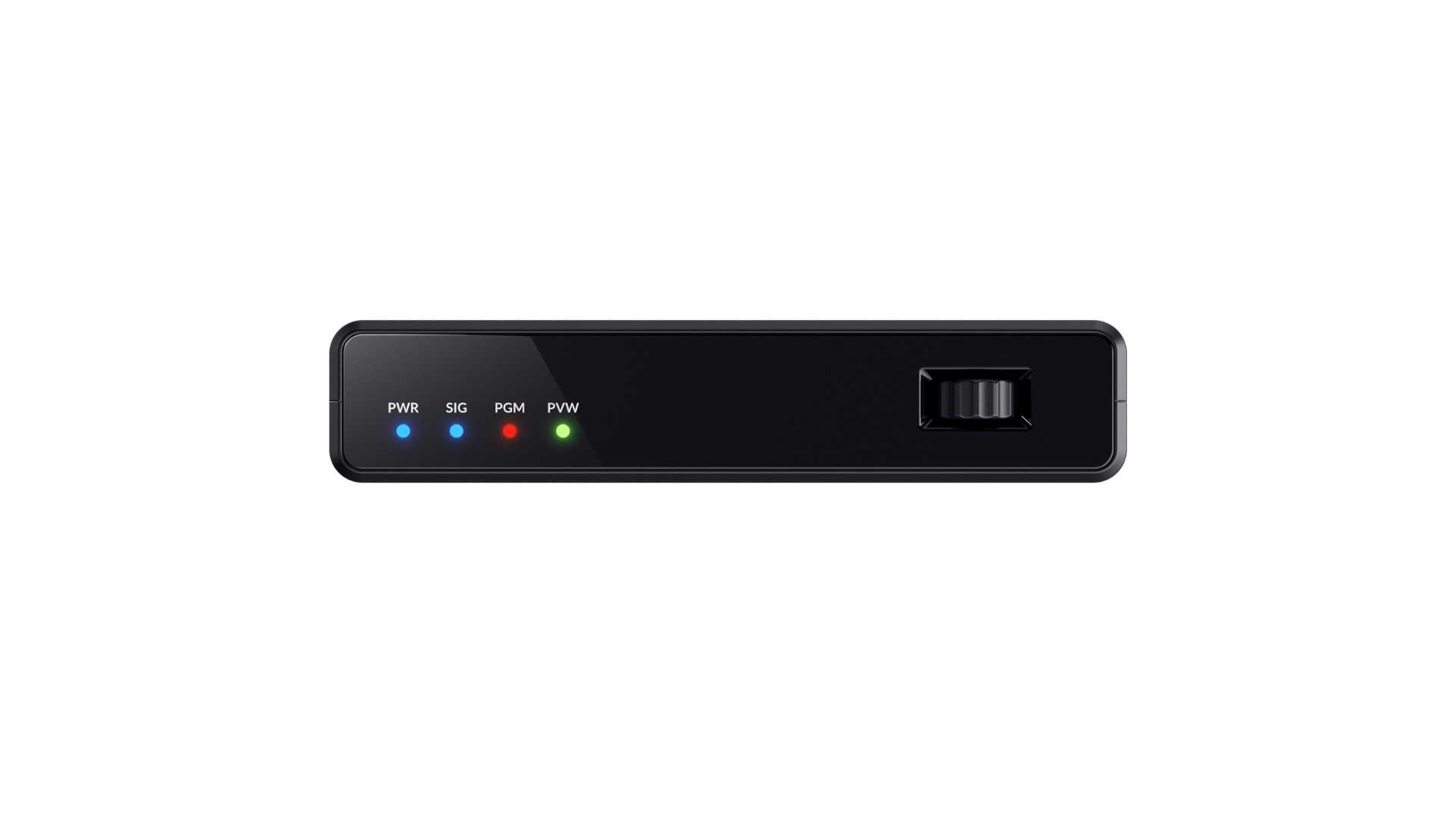

- LED status indicators
- Form factor: 4.72 in (L) x 3.12 in (W) x 0.96 in (H) (120 mm x 79.3 mm x 24.5 mm)
